Dolce Gusto Filling Machine

HSP Serial Dolce gusto filling and sealing machine is the Newest design machine used for Dolce gusto filling.With high speed and high quality meet EURO machine standard, this model Dolce gusto packing machineis design specially for Nescafe dolce gusto fiing machine.

The components of machine use top brand inthe world. So it is easy to find your local agent for the Dolce gusto making machine.The whole material of the machine is Stainless steel frame: Organic glass: Four columns mould structure’Fixed castor and Mobile pulley.

Model: HSP-1/2/4/6/8
Speed: 30/60/120/180/240 Cups per Minute

Video

Details

Workflow of Dolce Gusto Filling Machine

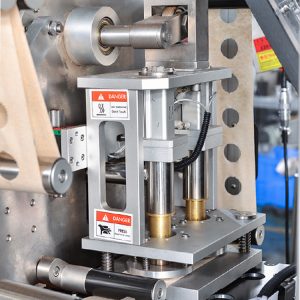

1.sealing-inside

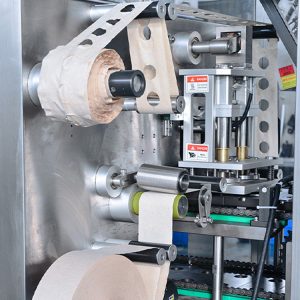

2.cutting

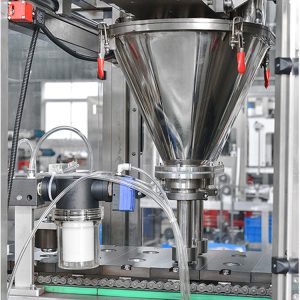

3.coffee-filling


4.top-sealing

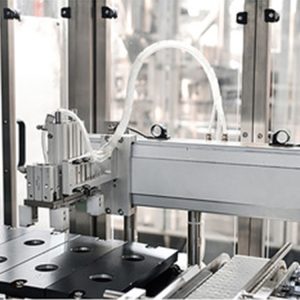

5.output

Main Working Process of Dolce Gusto Filling Machine

  • Empty dolce gusto capsules feeding system.
  • Automatic drop empty capsules to machine (the bottom of capsules samples was already sealed).
  • Automatic detect whether dolce gusto capsule well locatedon the machine by sensor.
  • Filling Nitrogen into capsule.
  • Servo motor to fill coffee while vibrating, weight around 5-20g ( can be adjust), also second time fillingNitrogen into capsule.
  • Filling dolce gusto pods flavours.
  • Sealing paper filter from roll on inner body of capsules.
  • Auto cutting paper from roll and seal on the top of capsule.
  • Auto Sealon the top of capsules second times.
  • Automatic exit to transport the finished dolce gusto to conveyor.

Product Parameters

NO.ModelHSP-1/2/4/6/8
1Speed30/60/120/180/240 capsule/minute
2Working station1/2/4/6/8 lanes
3Filling range5-20grams
4Filling accuracy±0.05g~±0.1g
5Voltage220V/380,60/50HZ,Customizable
6Air pressure /gas consumption≥0.8Mpa/0.1㎡
7Machine sizeL5100mm*W1200mm*H2500mm

FAQ

Q1: What type of coffee capsules is your Dolce Gusto Filling Machine suitable for?
A1: Our machines are specifically designed for Dolce Gusto coffee capsules, ensuring compatibility and efficient filling and sealing.

Q2: What is the production capacity of the machine?
A2: The production capacity depends on the machine model and typically ranges from thousands to tens of thousands of capsules per minute. We offer various models to meet different production needs.

Q3: Can the machine be customized to meet specific requirements?
A3: Yes, we provide customized solutions, including different sizes, features, and specific requirements, to meet your production needs.

Q4: Do your products comply with relevant quality standards and certifications?
A4: Yes, our products adhere to international quality standards and typically have CE certification, ensuring product quality and safety.

Q5: Do you offer after-sales support and warranties?
A5: Yes, we provide comprehensive after-sales support and warranty services to ensure the stable operation of the machines. Please contact our after-sales team for detailed information.

Q6: How can I obtain pricing and payment terms?
A6: Pricing and payment terms vary based on the order quantity and machine model. We offer different price tiers and flexible payment options. Please contact our sales team for a quote and payment details.

Q7: What is the delivery time?
A7: The delivery time varies depending on the specific order requirements and quantity. We will provide the exact delivery date after order confirmation.

Q8: Does the installation and operation of the machine require specialized skills?
A8: Yes, the installation of the machine typically requires professional skills. We can provide installation and operation training to ensure your team can use the equipment correctly.
